RFID access system via web interface with ESP8266

-
Today I want to introduct my RFID access door system with web interface.
Administrator
  • Manages the Web Interface
  • Seeing real-time attachment of card
  • Historically sees the last 100 attachments
  • One click can approve already attached card
  • Manual Card Entry User uses ATM card, ISIC card, meets ISO / IEC 14443 A standard
  • Removing a card
  • Graphical representation of approaches + doorman statistics
  • See source code for NodeMCU



User
  • Physically attaches the NFC tag / keyring / bracelet / card
  • If user is verified, door will be opened for 5 seconds
  • When a user is not verified, doors will not open
  • User doesn't have access to web interface


System offers:
  • Verify cards and web access to the object
  • The reader reads the ISO / IEC 14443 A card, sends its MAC address to the web, where OK / NO is verified
  • ISIC cards, ATM cards, employee cards can be used
  • In the case of the OK NodeMCU reply, it activates the tab to open the door.
  • From the inside of the building it is possible to open the door with a key, electromagnetic "tongue" retracts


Hardware:
  • NodeMCU
  • Base kit (optional)
  • Relay
  • electromagnetic tongue controlled by relay


How tongue works:


Screens:



Detailed infor about project: https://arduino.php5.sk/rfid-system.php?lang=en

Comments

Post a Comment

Popular posts from this blog

ESP32 control via UDP datagrams

-

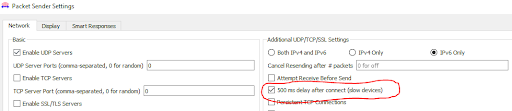

Today I would like to point out the possibility of controlling the ESP32 development board by sending UDP messages for easy ON / OFF control. This is one of the easiest ways to send data, process it, and take action based on the information received. ESP32 is a platform that is used in most cases in connection with WiFi connectivity as a webserver or webclient, which connects to a remote server and POST, GET method, or with the integration of the MQTT protocol, sends data to a remote server / guest. Libraries for ESP32 written in C++ Arduino core (framework) also allows to use asynchronous UDP libraries for sending and receiving data. An interesting feature is asynchronicity, as they work in the "background" and the user does not have to program complex functions to accept connections, process information, etc. To send data to the ESP32 development board, we need a simple UDP client. In my case, I used the Windows version of the relatively well-known Packet Sender client. It ...
